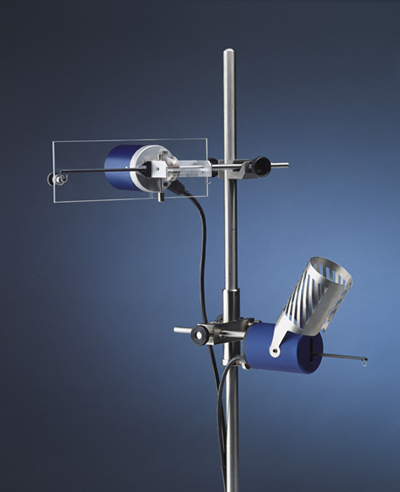

等張傳感器用于進行非常小和非??斓募±w維的實驗,這些非常小的并快速收縮的肌纖維能夠被100-200毫克以下的張力所牽拉,以至于能夠測得很小的力和位移變化。
等張傳感器用于進行極小和極快的肌纖維的實驗,這些非常小的并快速收縮的肌纖維能夠被100-200毫克以下的張力所牽拉,以至于能夠測得很小的力和位移變化。
輸出電壓: |
300μV每毫米(杠桿頭位移) |
|
杠桿臂: |
6 cm |
線性度: |
± 2% to ± 15 °旋轉角度 |
|
起步轉矩: |
小于0.1 gcm |
激發電壓: |
6 ÷ 15 V |
|
感性矩: |
35 gcm2 |
激發電流: |
20 mA (constant in the range 6 ÷ 15 V) |
|
尺寸: |
16.5 x 5.5 x11 cm |
工作范圍: |
± 15° about the centre (zero) |
|
凈重: |
0.35 Kg |
杠桿臂長: |
10 cm |
|
毛重: |
1.60 Kg |
特征 |
優點 |
霍爾效應傳感器 |
測量等張情況下的位移 |
鎢合金平衡物 |
極速反應用于檢測快速收縮 |
連接器有多種選擇 |
能夠用任何的數據采集系統采集數據 |
- O. E. Kiroglu alia: “EThe effects of thiol modulators on nitrergic nerve- and S-nitrosothiols-induced relaxation in duodenum” J. of Basic and Clinical Physiol. & Pharmacol. 0 (0): 1-8, 2013
- M. Bucci et alia: “Cross-talk between toll-like receptor 4 (TLR4) and proteinase-activated receptor 2 (PAR2) is involved in vascular function” Br. J. Pharmacol. 168 (2): 411-420, 2013
- C. Jelen et alia: “Bone scaffolds with homogeneous and discrete gradient mechanical properties” Materials Science & Engineering: C 33 (1): 28-36, 2013
- M. Volta et alia: “Pharmacological profile and antiparkinsonian properties of the novel nociceptin/orphanin FQ receptor antagonist 1-[1-cyclooctylmethyl-5-(1-hydroxy-1-methyl-ethyl)-1,2,3,6-tetrahydropyridin-4-yl]-3-ethyl-1,3-dihydro-benzoimidazol-2-one (GF-4)” Peptides 31:1194–1204, 2010
- P.U. Ertug: “Protective effect of quercetin, a polyphenolic compound, on mouse corpus cavernosum“ Fundamental & Clinical Pharmacology 24: 223–232, 2010
- O. Desire et alia: “Antispasmodic and antioxidant activities of fractions and bioactive constituent davidigenin isolated from Mascarenhasia arborescens” J. Ethnopharmacology. J. Pharmacol. Accepted: May 2010, 2004
- D. Currò et alia: “EVoltage-gated calcium channels involved in the inhibitory motor responses and asoactive intestinal polypeptide release in the rat gastric fundus” Eur. J. Pharmacol. 628: 207-213, 2010
- C. Belloli et alia: “Adrenergic Regulation of Vascular Smooth Muscle Tone in Calf Digital Artery” J. Vet. Pharmacol. Therap. 27:4: 247-254, 2004
- F. Carpi et alia: “Electromechanical Characterisation of Dielectric Elastomer Planar Actuators: Comparative Evaluation of Different Electrode materials and Different Counterloads ” Sensors and Actuators. 107: 85-95, 2003
- P. Tucci et alia: “Cyclo-Oxygenase- and Capsaicin-Sensitive Afferent Fibres Affect Beta-Adrenoceptor-Evoked Response in the Rat Urinary Bladder” Pharmacology 64: 57-62, 2002
- P.C. Moser et alia: “SL65.0155, A Novel 5-Hydroxytryptamine4 Receptor Partial Agonist with Potent Cognition-Enhancing Properties” J. Pharmacol. Exper. Therap. 302:2: 731-741, 2002
- P. Tucci et alia: “Effects of Natural Tachykinins on Ovine Lower Urinary Tract Smooth Muscle” J. Autonomic Pharmacol. 21:2: 79-84, 2001
- C.M.Q. Jesus-Morais et alia: “Yangambin, a Lignan Obtained from Ocotea duckei, Differentiates Putative PAF Receptor Subtypes in the Gastrointestinal Tract of Rats” Planta Med. 66:4: 211-216, 2000
