7003、7004、7005三種型號的傳感器所包含從0到50克的力(詳見儀器宣傳冊中的表格)。
7003、7004、7005三種型號的傳感器所包含從0到50克的力(詳見儀器宣傳冊中的表格)。
特征 |
優點 |
量程大(0.8-50克) |
不同的靈敏度、量程用于不同的測試 |
結構可靠,可調整補償 |
使用壽命長 |
多種連結器可選 |
能用于任何數據采集系統 |
型號 |
7010 |
7003 |
7004 |
7005 |
電壓規格 |
|
|
|
|
|
||||
激發電壓(最大) |
6V |
6V |
6V |
6V |
激發電壓(典型) |
3V |
3V |
3V |
3V |
靈敏性(μV per g per V) |
110 |
70 |
25 |
10 |
非線性&磁滯 |
± 3% |
± 3% |
± 3% |
± 3% |
力的規格
|
||||
力的范圍 |
0-800 mg |
0-2 g |
0-10 g |
0-50g |
額定過載量 |
5 g |
20 g |
50 g |
200 g |
慣性矩 |
7 gcm2 |
7 gcm2 |
7 gcm2 |
7 gcm2 |
杠桿臂位移 |
0.5 mm/g |
0.3 mm/g |
0.1 mm/g |
0.06 mm/g |
凈重 |
270 g |
270 g |
270 g |
270 g |
毛重 |
900 g |
900 g |
900 g |
900 g |

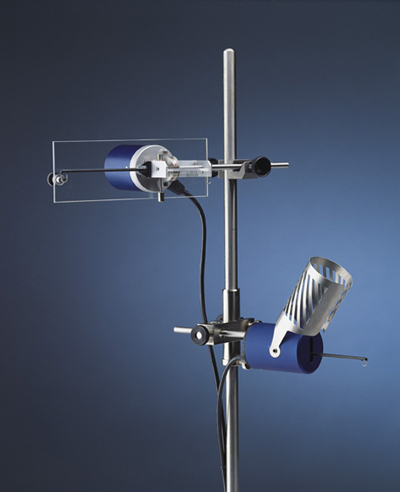

等容傳感器7003, 7004, 7005
- H. Ellers et alia: “Pungent General Anesthetics Activate Transient Receptor Potential-A1 to Produce Hyperalgesia and Neurogenic Bronchoconstriction” Anesthesiology 112: 1452– 63, 2010
- A. Rizzo et alia: “Effects of rosiglitazone, a PPAR-c agonist, on the contractility of bovine uterus in vitro” J. vet. Pharmacol. Therap. 32, 548–551, 2009
- L. Natale et alia: “Interleukins 1 Beta and 6 Induce Functional Alteration of Rat Colonic Motility: An In Vitro Study” Eur. J. Clin. Investigation 33 (8): 704-712, 2003
- D. Mitolo-Chieppa et alia: “Involvement of κ-Opioid Receptors in Peripheral Response to Nerve Stimulation in κ-Opioid Receptor Knockout Mice” Autonomic & Autacoid Pharmacology 22:4: 233-239, 2002
- M.R. Accomazzo et alia: “Leukotriene D4-Induced Activation of Smooth-Muscle Cells From Human Bronchi Is Partly Ca2+-Independent “ Am. J. Respir. Crit. Care Med. 163:1: 266-272, 2001
- M. Shalev et alia: “Stimulation of P2y Purinoceptos Induces, Via Nitric Oxide Production, endothelium-Dependent Relaxation of Human isolated Corpus Cavernosum“ J. Urol. 161: 955-959, 1999
- M.C Breschi et alia: “Effects of Noise Stress on EFS-Mediated Cholinergic and Inhibitory NANC Responses in Tracheae from Normal and Sensitized Guinea-Pigs” J. Autonomic Pharmacol. 17:6: 353-363, 1997
- M.K. Sim et alia: “Presence of an Endothelial Esterase in the Rat Aorta: Effects on the Actions of Ester and Non-Ester Muscarinic Antagonists” Endothelium 1: 109-114, 1993
High-Sensitivity Transducer 7010
- L.W. Tait et alia: “Hagfish natriuretic peptide changes urine flow rates and vascular tensions in a hagfish” Comparative Biochemistry and Physiology C (150) 45,-49, 2010
- G. Froldi et alia et alia: “Activity ofsapfrom Croton lechleri on ratvascularand gastric smoothmuscles” Phytomedicine 16: 768-775, 2009
