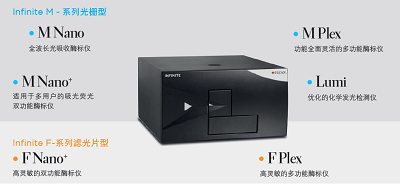

Infinite < M200 PRO-grating type multi-function microporous plate detector

Quad4 Monochromators four grating technology ensures that Infinite M200 PRO has excellent detection sensitivity. Infinite M200 PRO grating has a wavelength range from ultraviolet to near infrared, and can be used for full-band scanning detection of light absorption, fluorescence excitation and emission. The operation is simple and convenient. Without changing hardware manually, the user can switch the detection mode, change the detection wavelength, and change the top and bottom reading mode at will by clicking the mouse.

Infinite < F200 PRO-Filter Type Multifunctional Microporous Plate Detector

Infinite < F200 PRO uses a filter system to provide efficient and economical detection means for commonly used fixed wavelength detection. Infinite < F200 PRO Patented Intelligent Filter Frame System automatically identifies and records the location of the filter, and monitors the service life of the filter throughout. The fluorescence polarization mode detection module (FP) is specially designed for molecular binding experiments in homogeneous phase. The bisector design perfectly supports TR-FRET (time-resolved fluorescence resonance energy transfer) detection.

Infinite 200 PRO - Typical Performance Parameters

Light Source: UV High Energy Scintillation Xenon Lamp

Wavelength selection:

Infinite M Series: Quad4 Four Grating System (2 Excited Grating and 2 Emitted Grating)

Bandwidth:  Ex: < 5 nm when λ ≤ 315 nm & < 9 nm when λ > 315 nm;Em: < 20 nm

Photoabsorption fluorescence

Wavelength accuracy: <+0.5 nm when lambda>315 nm; <+2 nm when lambda>315 nm;< 0.3 nm when lambda < 315 nm； < 1 nm when lambda < 315 NM

Wavelength repeatability: <+0.5 nm when lambda > 315 nm; <+1 nm when lambda > 315 nm;< 0.3 nm when lambda < 315 nm; < 0.5 nm when lambda < 315 NM

Infinite F Series: Up to four pairs of filters can be loaded on each filter rack

Wavelength range:

Fluorescence intensity: Ex 230-850 nm, Em 280-850 NM

Light absorption: 230-1000 NM

Detector: Fluorescence-Photomultiplier Tube (PMT) Sensitive to Ultraviolet and Red Light

Optical Absorption-Ultraviolet Silicon Photodiode

Luminescence-low dark current single photon counting photomultiplier tube

Plate format: 6-384 orifice plate, colorimetric cup, nanoQuant micro-detection version

Temperature Control: Ambient Temperature + 5 to 42 C

Vibrating Plate Mode: Linearity and Track

Fluorescence sensitivity value:

Infinite F series Infinite M series

Fluorescence top reading: 85 amol / well (100 ugl, 384 orifice plate); 170 amol / well (100 ugl; 384 orifice plate)

Fluorescence bottom reading: 5.0 fmol/well (200 ull; 96 orifice plate); 9.0 fmol/well (200 ull; 96 orifice plate)

TRF: 2.8 amol/well (100 mul; 384 orifice plate); 90 amol/well (100 mul; 384 orifice plate)

Luminescence sensitivity value:

Glow: 225 amol ATP/well (25 ugl; low volume 384 orifice plate)

Flash: 12 amol ATP/well (55 ugl; 384 orifice plate)

Light absorption:

Ratio accuracy 260/280 nm (+0.07)

Accuracy @ 260 nm < 0.2%

Accuracy @ 260 nm < 0.5%

Measurement Range 0-4 OD

Sample feeder:

Sampling speed 100-300 ml/s

Sampling amount 1 ml increment is optional; 800 ml/stroke

Dead volume 100 ml, including pump reflux

The fastest board reading time:

96 orifice plate 20 sec

384 orifice plate 30 sec

Wavelength Ex/Em Scanning, 96-hole Plate

450-550 nm, 5 nm step 150 sec

Adhering to the excellent quality and successful experience of Infinite ® 200 PRO series, Tecan's newly developed Infinite ® 200 PRO series further improves the powerful performance of raster and filter systems to meet the needs of users in the field of scientific research. Infinite ® 200 PRO provides you with a broader application area, more flexible and scalable detection solution. Modular design, powerful function, comprehensive support for a variety of leading detection methods. Infinite ® 200 PRO can be configured with eight detection modes, which can detect all the common plate types such as 6-384 orifice plate, PCR plate and colorimetric cup. Three different detectors are used for fluorescence, chemiluminescence and light absorption detection modes, so that you can obtain unparalleled accurate results in all detection modes.

Infinite M200 PRO and Infinite F200 PRO can be equipped with a variety of functional modules to provide you with a wider detection wavelength range and higher detection sensitivity:

- Chemiluminescence detection module can also ensure good light absorption detection effect for micro-samples.

- More advanced detection system

- Flexible, versatile and powerful detection function

- Z Axis Autofocus Function

- Infnite 200 PRO, innovative design more suitable for cytological detection

New optimized adder module - MultiCheck (- Infnite 200 PRO quality control suite series

Infinite < 200 PRO has excellent functions and can be widely used in many biological research fields

Quantitative detection of DNA/RNA

Quantitative detection of protein

Ion Channel Study

Ion Current Study

Calcium ion detection

Reporter Gene and Gene Expression Analysis

Study on Cell Vitality and Cytotoxicity

cytological detection

Molecular Interaction/Binding Studies

Enzymology research

ELISA

Immunological analysis

Fluorescence and Chemiluminescence Applications
